0.1 to 3GHZ Amplifier

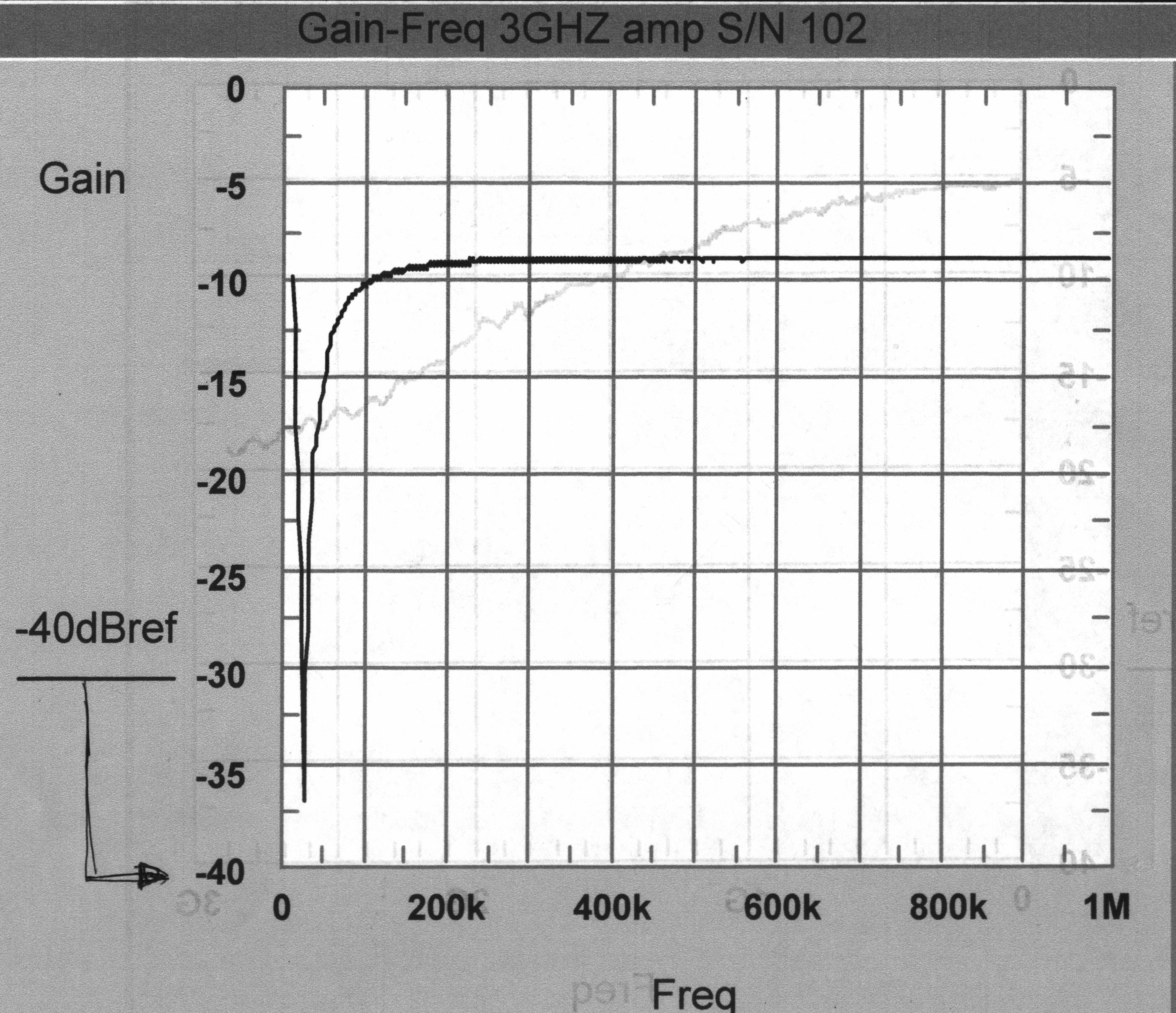

The amplifier has been designed with large coupling capacitors to enable gain to be obtained right down to 100KHZ. This could be usful for EMC measurements.

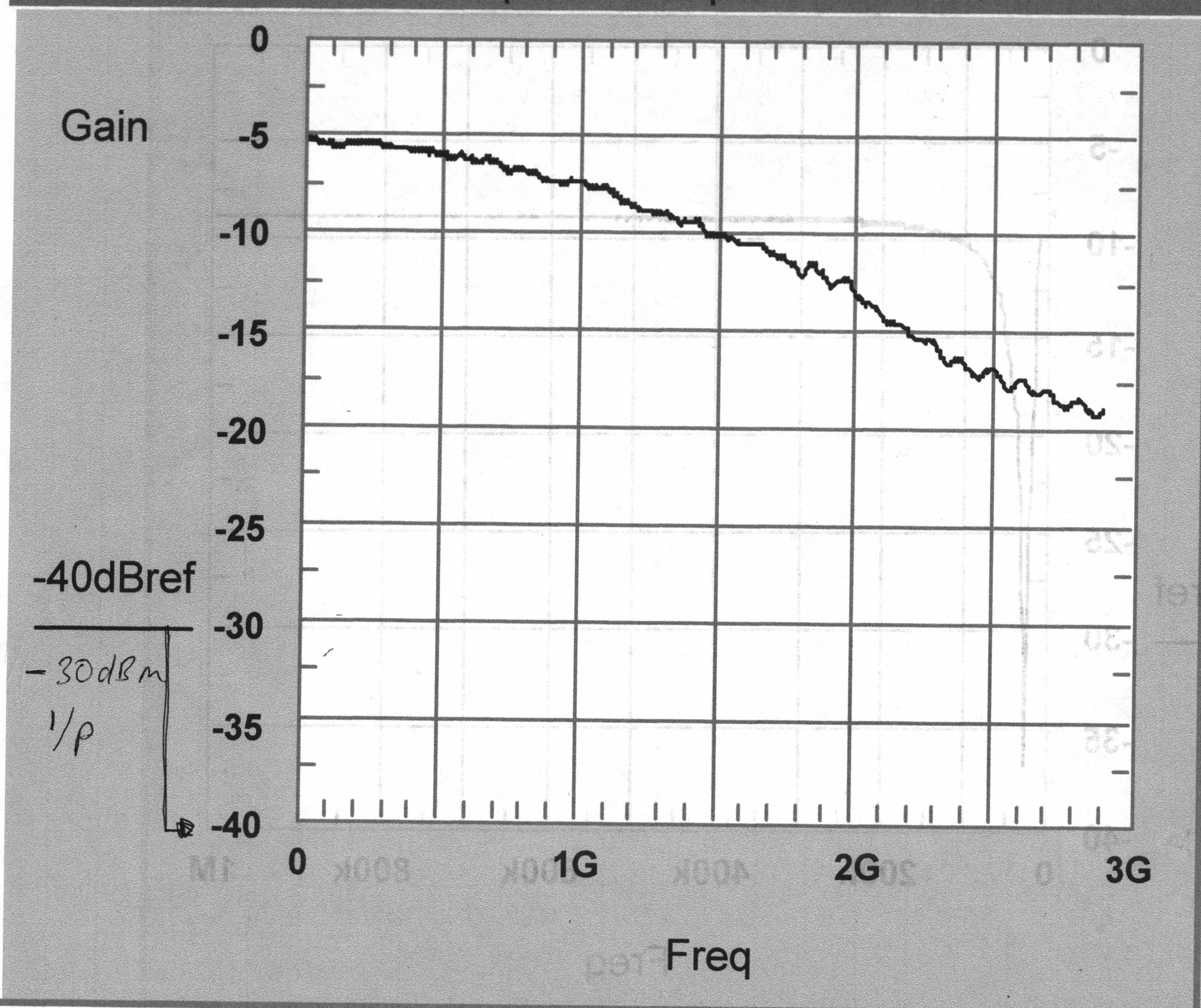

At higher frequencies the gain tails off as could be expected but is a good 30dB up to 1GHZ.


The amplifier is stable and generates little noise as long as both o/p and i/p are terminated (it will go off with an o/c co-ax lead connected to the i/p).
Maximum output before saturation is 100mW(+20dBm).

Further specs and physical size.                 See  -140dBm signals
